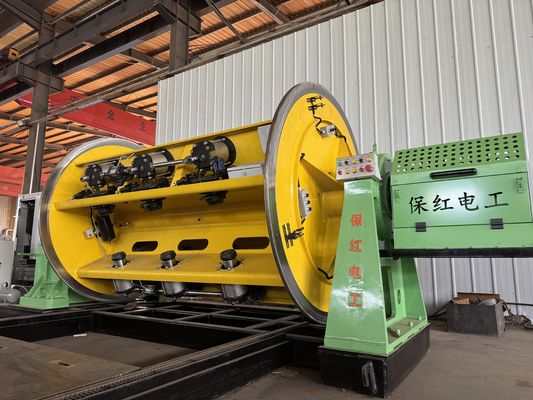

JLK630/6+12 Copper Conductor Wire - Color Optional for Rigid Strander

JLK630/6+12 Copper Conductor Wire - Color Optional for Rigid Strander

1. Application

Mainly used for stranding and compaction of copper and aluminum sector conductors, stranding, drawing and compaction of round and special-

shaped conductors, as well as stranding production of steel-cored aluminum strands.

2.Main technical parameters

3.Main features

3.1 The wire break alarm signal is transmitted wirelessly, effectively avoiding confusion or failure of transmission lines.

3.2 A cabinet-type touch screen console is adopted, which is easy to operate and aesthetically pleasing.

3.3 The reinforcing ribs of the main machine stranding body are made of rectangular square tubes, avoiding the vibration of single plates.

3.4 The new belt-type tensioning device uses high-wear-resistant friction blocks, making adjustment more convenient and service life longer.

3.5 Cables and air circuits inside the machine are hidden in the base square tubes to avoid damage and mess.

3.6 Reinforcing ribs are added to the front bracket of the main machine to increase stability. The wire die base is connected to the front bracket of

the main machine, resulting in stronger integration and better mechanical rigidity.

3.7 The front and rear shaft heads of the main machine are made of integral cast steel parts, avoiding cracking caused by welding.

3.8 The area of the main machine's brake part is increased to improve braking performance.

3.9 The surface of the traction wheel is polished.

3.10 The main machine protective covers are all electric protective nets, which are easy to operate and absolutely high-end and atmospheric, instantly upgrading the equipment to a higher level.

4. Main components

4.1 Φ630 Pay-off stand

4.2 6B,12B strander

4.3 wire combining device

4.4 Smart meter counter

4.5 Φ 1600 strong double capstan

4.6 Φ2500 Take-up and pay-off stand

4.7Transmission system

4.8 Electric control system

4.9 Safety protection system (Manual sliding safety cover)

4.10 Ground shaft safety cover

4.11 Coil loading lifting tool

4.12 Pneumatic wrench

4.13Large display screen

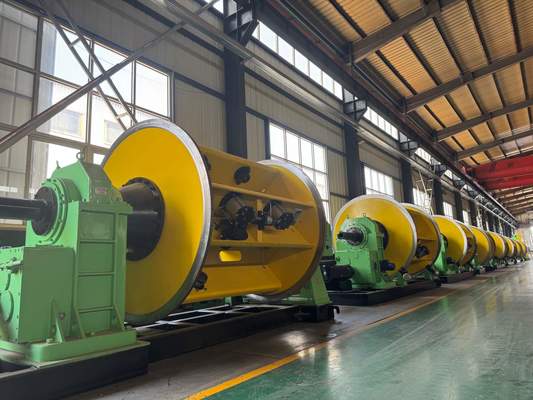

5.Photos

6. Packing photos

7. Our factory and company introduction

Hebei Baohong Electrical Machinery Co., Ltd. was founded on August 1, 2006. Located in the industrial zone of Shawa Township, Hebei City,

which lies at the triangular center of Beijing, Tianjin and Shijiazhuang, the company enjoys convenient transportation and abundant iron and steel

resources. Starting with the production of stranding machine series products, it has undergone 18 years of development. By fully relying on talent

advantages and technical strength, the company continuously researches and develops new technologies and processes, achieving steady

growth and gradually evolving into a comprehensive economic entity with advanced manufacturing technology, strong production capacity, and

sales networks covering the whole country and overseas.

The company covers a factory area of 30,000 square meters, with more than 100 employees, including 12 mechanical and electrical engineers,

and its processing equipment totals more than 60 million yuan. Currently, through the introduction of large-scale processing equipment and the

research, development and improvement of processes, the company has become the only manufacturer in China that produces JLK cage

stranding machine series units on an assembly line.
